Biancalani AlRO®24, the original dryer forcontinuous and open-width tumbling treatments ofwoven,non-woven, and knitted fabrics. A high-quality finishing style, which has no equal in theworld. The AlRO® style.
Advantage
01
AVAILABLE IN SEVERAL VERSIONS
Single · Duetto .Tandem . Triplex
02
PRODUCTION SPEED
Up to 80 metres per minute
03
PROCESSING SPEED
Up to 2800 metres per minute
04
EVAPORATION CAPACITY
Up to 1400 kg per hour with a single machine
Here's how it works
A set of airflows drive the fabric at very high speed in alternating directions, through the treatment channel, against specially-designed stainless-steel grills where it releases all its kinetic energy, acquiring body, volume, drape and better stability. This is the heart of AlRO treatment, in a continuous and open-width process.

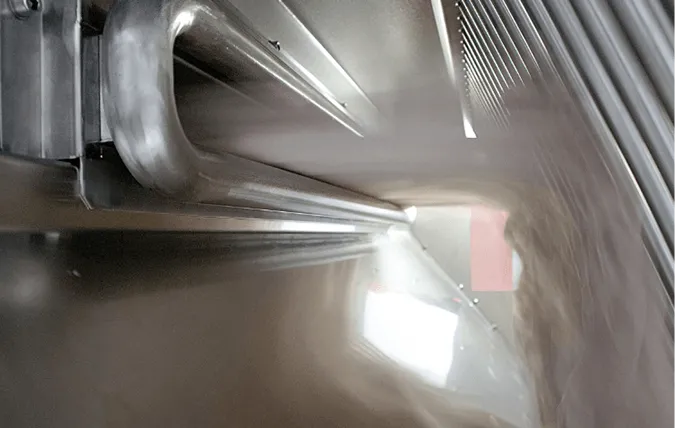

Air expertise from AIRO experience
The experience of AlRO led to the specific shape of the treatment channel of AlRO24, conceived to maximize the efficiency of the process and designed without any internal moving part in order not to offer any resistance to the air or to the fabric, which can travel inside it at more than 2800 m/min (168 km/h). The large number (over 1000) of AlRO installed has also enabled us to exactly define angle, distance and structure of the special grills, which are placed in front of the channel openings.
Fit for any job
Available with diferent production capacity, in SINGLE, DUETTO, TANDEM, and TRlPLEX versions, in partnership with the different sizes ofAlRBOX,in ine with squeezing and finishing padders, or following an AQUARlA washing range, AlR0"24 can satisfy every production need.
AlRo 24 can be fitted with a set of accessories, such as the STEAMING set at fabric entry, or the patented H-SHUTTER device thatindependently varies the width of each end of the treatment channel, increasing the performances and offering extreme flexibility for specialapplications.
In addition, the quick-threading MULT!-PANEl configuration with easy switch from one to two or three panels of fabric, and the TWIN-TUBULAR configuration, allow to fully exploit the processing power of the machine.
Suitable for every fabric
AlRO can process any type of textile surface in a very wide range of materials, always with optimal results. From natural fibres and blendsto artificial (viscose, polyammide, Lyocell, Cupro, Modal and synthetic ones, woven, knitted, non-woven, coated, or laminated, for differentapplications ranging from apparel to upholstery to home textile and technical applications. There are no limits in terms of weight and widthResults are obtained in complete safety and without defects
What can AlRO®24 do for you?
Airflow (AlRO®) tumble-drying and mechanical softening of wet fabric.
VMechanical. chemical-free softening, on dry fabric or with steam application.
Mechanical softening after application of chemical products.
Super soft and super swelling treatment of terry towel. Much more than tumbling!
Single-pass high efficiency polymerization and softening of resin-treated fabric.
Cleaning treatment after bio-polishing and surface finishing.
Preparation for subsequent treatments such as shearing or coating
Compaction, stabilization, relax.
Which results will AlRO®24 deliver?
Softness, volume, drape (AlRO@ Hand)
Swelling, perfect straightening and de-twisting of theloops on terry towels
Hand breaking on particularly rigid fabric and laminatedmaterials
Dimensional stabilitv,relaxation, increase in elasticity,resilience, and“sewability
Softness and uniformity of the surface on printed cloths
Uniformity and absence of directionality on pile fabrics
Casual look and wrinkled effect
Opening of the chenille and three-dimensionality on jacquards
Depth and richness of colours on yarn-dyed fabrics
Peachy hand on emerized and brushed surfaces
Grain-enhancement and natural/aged look on synthetic leather
Increase of adhesivity and surface conductivity on non-woven substrates
Higher transpiration capacity and/or increasedhydrophilic properties for special applications
AlRO® hand label certifies the original AlRO® effect
of the fabric fnished in a Biancalani machine.
AlRO can process any type of textile surface in a very wide range of materials, always with optimal results. From natural fibres and blendsto artificial (viscose, polyammide, Lyocell, Cupro, Modal and synthetic ones, woven, knitted, non-woven, coated, or laminated, for differentapplications ranging from apparel to upholstery to home textile and technical applications. There are no limits in terms of weight and widthResults are obtained in complete safety and without defects
Technical specifications
| Available working widths | Up to 3600 mm |
| Production speed (fabric in/out) | 5-50 m/min (up to 80 m/min on request |
| Fabric treatment speed | Up to 2800 m/min |
| Fabric inlet | Free/A-frame /in line |
| Fabric delivery | Plaiter /A-frame /in line |
| Maximum air temperature | 170℃ |
| Evaporation capacity | Up to 1400 kg/h |
| Installed electrical power | Starting from 90 kW |
| nstalled thermal power | Up to 800 kW |
| Average utilization of gas |steam | 30 Nm/h(gas)|520 Kg/h(steam) |
| Max consumption of compressed air | 500 NI/min |
| Dimensions(WxLxH) | From 3400×11700×3300 mm |
